CVR1 TECHNICAL SPECIFICATION

CONCAVE PROFILEWHEEL SIZEOFFSET RANGEMAX LOADSUGGESTED RETAIL PRICEBOLT PATTERN
PERFORMANCE19 x 8,520 - 45725 KG400 EURALL PCD`S BETWEEN 5x108 - 5x120
DEEP19 x 9,520 - 45725 KG450 EURALL PCD`S BETWEEN 5x108 - 5x120

Depending on the exact model and size, between 2 to 4 unique face profiles are available (from Performance to Extreme Concave), in different widths. This allows us to offer wheels for cars from nearly every segment.

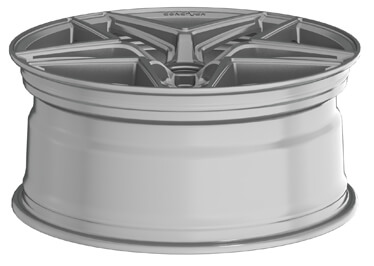

PERFORMANCE CONCAVE

The least concave profile in our offer, designed for maximum brake clearance, which makes it appropriate even for larger brakes of top-quality supercars.

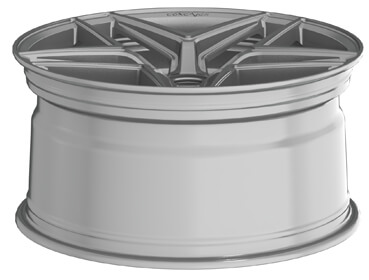

MID CONCAVE

The middle ground between the near-flat wheels and deep concave wheels. Our Mid Concave profile is an ideal choice for those clients who are looking for the balance between subtlety and dynamism.

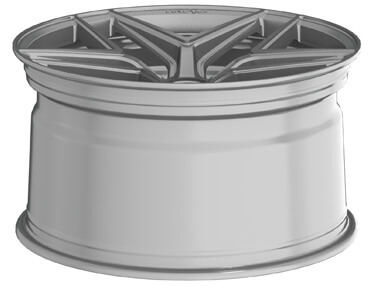

DEEP CONCAVE

Deep Concave wheels are targeted at customers who want to give their car a dynamic and aggressive character. It’s the perfect choice for those of you want to fit in with the latest automotive trends.

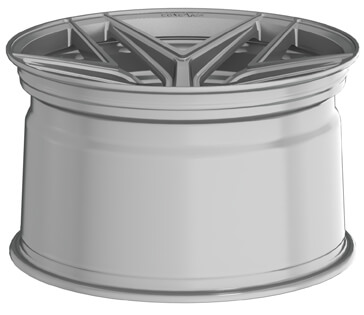

EXTREME CONCAVE

The most dynamic of our profiles, Extreme Concave, will give your car a unique, sporty and aggressive character, without compromising on elegance and stylish appeal.

HYBRID FORGED PROCESS

STEP I

Step 1

Mounting of a specially prepared cast face to flow-forming drum and applying extensive heat.

STEP II

Step 1

High-pressure rollers move down the barrel while applying pressure, stretching the wheel as a result.

STEP III

Step 1

The process continues until the desired width and density of the barrel are acquired.

STEP IV

Step 1

By compressing the properties of the wheel, we achieve a wheel that is lighter and yet offers a higher impact tolerance.

Available Wheel Finishes

  • Brushed Bronze

  • Brushed Titanium

  • Carbon Graphite

  • Platinum Black
